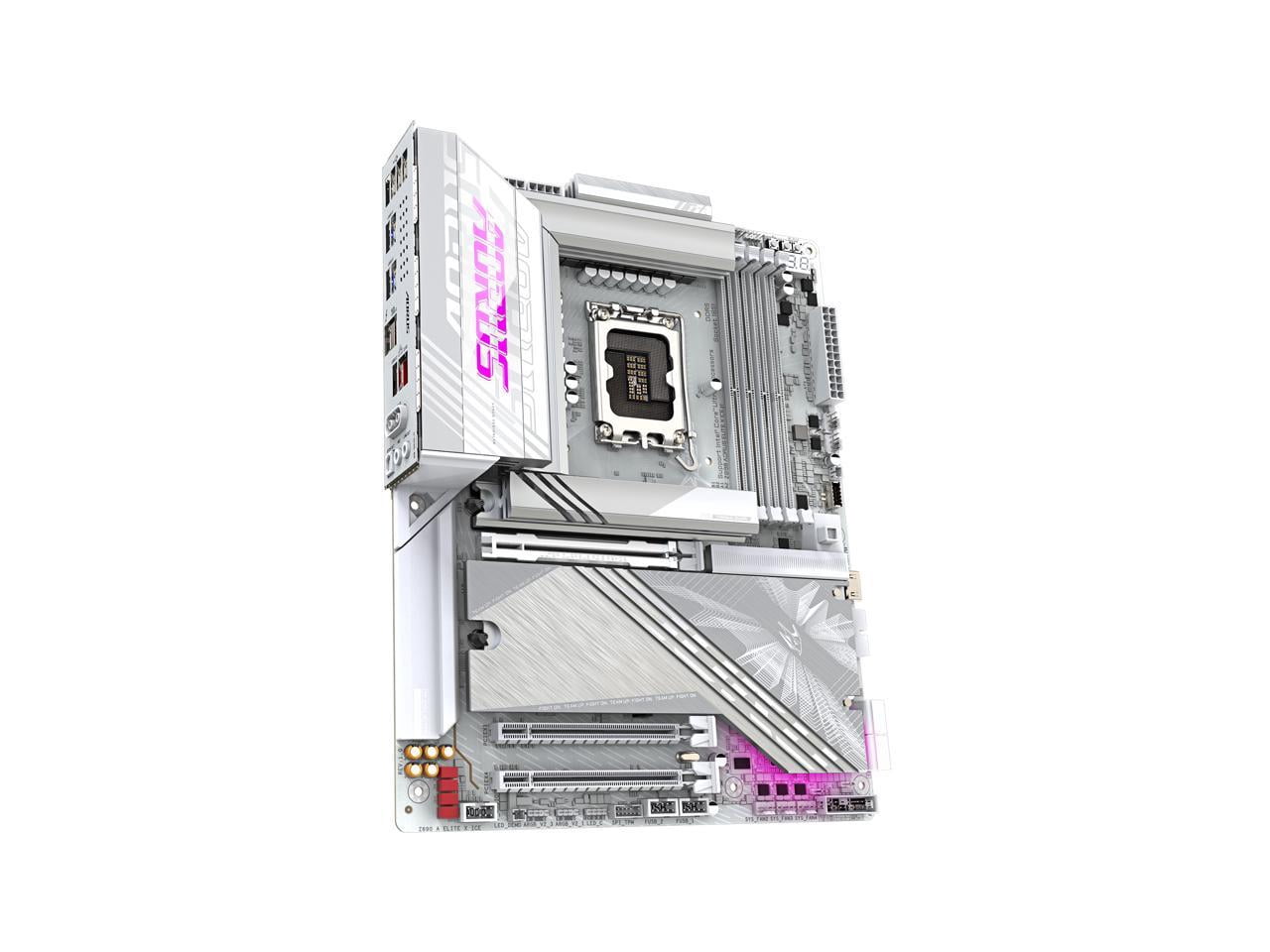

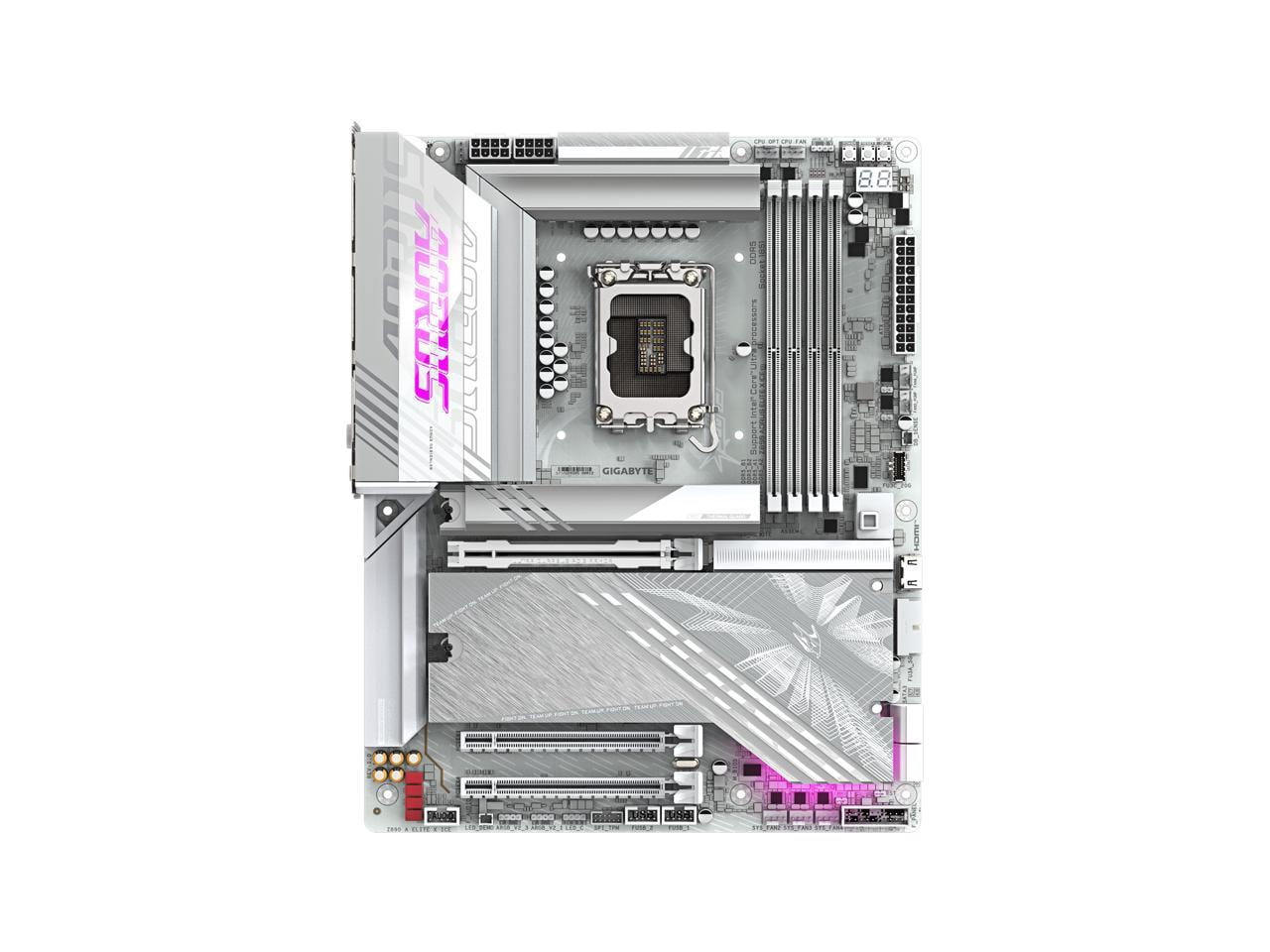

Aorus Ultra Durable Z890 A ELITE X ICE Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX (z890aoruselitexice)
Product details
| Management number | 231083209 | Release Date | 2026/06/18 | List Price | US$103.60 | Model Number | 231083209 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<b><u>Technical Information</u><br></b><br><b>AI-powered:</b> Yes<br><br><b><u>Processor & Chipset</u><br></b><br><b>Chipset Manufacturer:</b> Intel<br><b>Chipset Model:</b> Z890<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket LGA-1851<br><b>Processor Supported:</b> Core Ultra<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 256 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><b>Memory Speed Supported:</b> 7600 MHz, 7400 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 7800 MHz, 7900 MHz, 7950 MHz, 8000 MHz, 8200 MHz, 8266 MHz, 8400 MHz, 8600 MHz, 8800 MHz, 8933 MHz, 9066 MHz, 9200 MHz, 9333 MHz, 9466 MHz, 9500 MHz<br><b>Error Checking:</b> ECC<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 5, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><b>Graphics Controller Manufacturer:</b> Intel<br><b>Graphics Controller Model:</b> HD Graphics<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network & Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.4<br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11 a/b/g/n/ac/ax/be<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 3<br><b>PCI Express Standard:</b> PCI Express 4.0, PCI Express 5.0<br><b>Total Number of PCI Express Slots:</b> 3<br><b>Number of PCI Express x16 Slots:</b> 3<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 11<br><b>Number of USB 2.0 Ports:</b> 4<br><b>Number of USB 3.2 Gen 1 Ports:</b> 4<br><b>Number of USB 3.2 Gen 2 Type-A Ports:</b> 2<br><b>S/PDIF:</b> Yes<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 1.4<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><b>Thunderbolt:</b> Yes<br><b>Number of Thunderbolt 4 Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 5<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> ATX<br><b>Width:</b> 12"<br><b>Depth:</b> 9.6"<br><br><b><u>Miscellaneous</u><br></b><br><b>Brand Compatibility:</b> Intel
- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- Power Design: 16+1+2, 80A Smart Power Stage
- Thermals: VRM Thermal Armor and M.2 Thermal Guard
- Connectivity: PCIe 5.0, 5x M.2 Slots, Thunderbolt 4, Front USB-C, Sensor Panel Link
| Cpu socket type | Socket LGA-1851 |
|---|---|
| Motherboard form factor | ATX |
| Memory configuration | 4 x Memory Slots |
| Proc. brand | GIGABYTE |
| Max RAM | 256 GB |

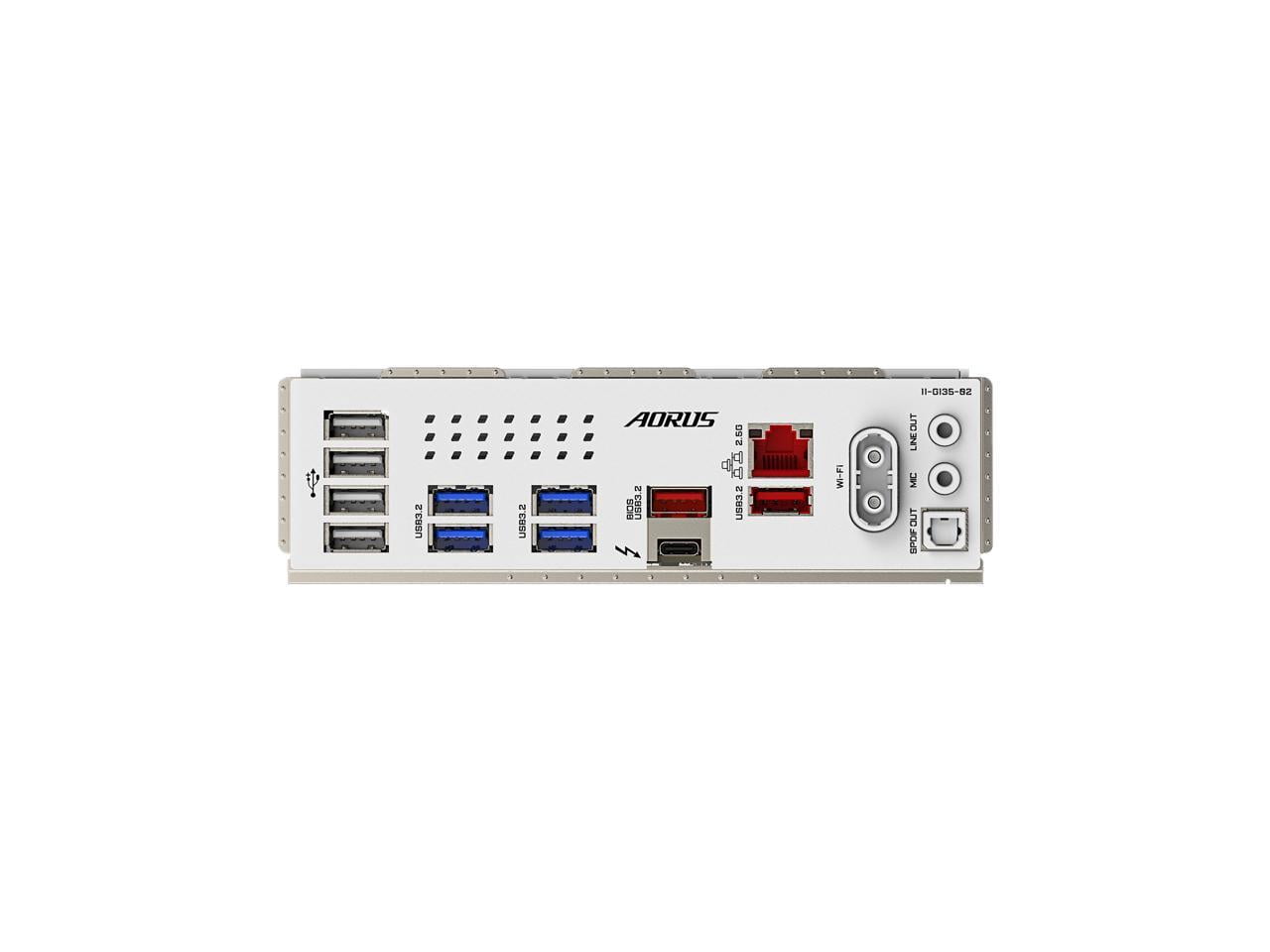

| Inputs/Outputs | Outputs - USB 2.0, S/PDIF, HDMI, DisplayPort, Thunderbolt |
| Brand | GIGABYTE |
| In/Out type | Wireless |
| Number of ports | 17 |
| Input/output quantity | 31 |
| Model name | Z890 A ELITE X ICE |
| Accessories | M.2 EZ-Latch,PCIe EZ-Latch,WIFI EZ-Plug,EZ-Debug Zone |
| Has written warranty | No |
| Height | 3.5 in |
